Car Brake & Axle Load

Car Brake & Axle Load (LD) adalah alat uji rem dengan kapasitas hingga 4 ton.

Brake & Axle Load

Car testlane 2 in 1 with Analog-Display

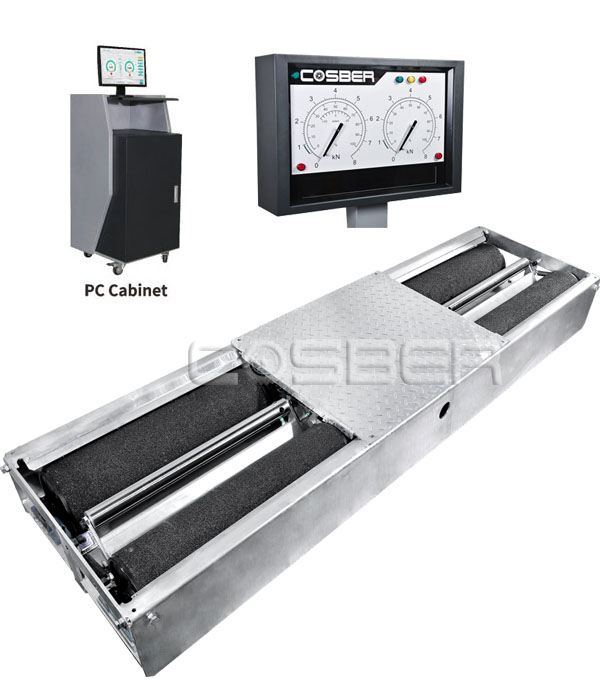

Roller Brake dan Axle Load Meter model BTC22 with Analog-Display 4kW, Cosber memiliki rangkaian lengkap alat penguji rem yang berbeda untuk kendaraan Ligh Duty yang mengikuti panduan produsen mobil dan organisasi pengujian kendaraan bermotor sesuai Standar Organisasi International (ISO).

Rangkaian produk modular ini memungkinkan banyak kombinasi untuk memenuhi permintaan pelanggan dan dapat diperluas ke jalur pengujian yang lengkap, Dirancang oleh teknik Jerman, dilengkapi dengan sensor motor pasir Jerman Jerman. Aksesori seperti 4WD, tampilan analog, dukungan drive out, beban kendaraan, dan versi remote control radio tersedia.

  • Dirancang oleh teknik Jerman, dilengkapi dengan loadcells berkualitas.
  • Sistem Penimbangan menggunakan 4 tititk masing-masing sisi
  • Dilengkapi dengan kit penggerak empat roda, ideal untuk kendaraan 4WD.

Standard:

  1. Hot-dip galvanized roller set
  2. Low-wear corundum rollers 700mm
  3. Adjustment screws for height adjustment
  4. Wear-free, electronic measuring system
  5. All car brake testers are prepared for upgrading the 4-point-weighing system
  6. Car brake tester fits in all common pits
  7. All car brake testers can be extended to test lane
  8. Compact control box
  9. Speed sensors
  10. Manual / automatic mode, delayed automatic switch-on
  11. Start-up monitoring, slip shut-off and shutdown after driving out from the brake teser
  12. Optimized test procedure also suitable for electronic parking brakes
  13. Electromagnetic engine brake as drive out support
  14. Powerful 4kW motors (braking power: >8kN, test load at 50% deceleration: 4,0t)
  15. Four-wheel drive kit, ideal for 4x4 vehicles
  16. Lockable main switch
  17. Large easy-to-read analog display with 2x255mm (300°) clocks
  18. Analog display with 16-digit LED display
  19. ASA-Livestream
  20. Wall mounting for control box
  21. Swivel arm for analog display
  22. Fast delivery and installation

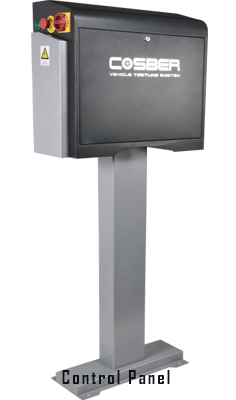

Control Panel Digital Display Analog Pedal Effort PC Cabinet

Optional Accessories :

  1. Assembly frame
  2. Assembly case
  3. 4x4 manual & automatic
  4. Remote control
  5. Pedal force sensor (radio version)
  6. Pedal force sensor (cable version)
  7. 4-point-weighing system
  8. PC connection with PC visualization (standard car software)
  9. Swiveling roller cover plates (set)
  10. Motorcycle cover plate
  11. Post for analog display or control box
  12. Moveable PC trolley (empty) for customer PC
  13. Universal mounting kit - height compensation for pits up to 30mm
PC Cabinet

Spesification :

  1. Test width min: 800 mm
  2. Coefficient of friction dry/wet: > 0.7 / > 0.6
  3. Fuse protection: 3 x 32 A slow-blow
  4. Motor power: 2 x 4,0 kW
  5. Test width max: 2200 mm
  6. Power supply: 3 x 400 V, N, PE 50 Hz
  7. Brakeable performance max: 10,0 kN
  8. Test speed: 5,1 km/h
  9. Weight: 430 kg
  10. Max. drive-over load: 4000 kg
  11. Roller elevation: 25 mm
  12. Height Rollerset: 240 mm
  13. Width Rollerset: 2320 mm
  14. Roller length: 700 mm
  15. Roller diameter: 205 mm
  16. Length Rollerset: 660 mm
  17. Display cabinet Measuring range: 0 - 8 kN
  18. Brake tester Roller set: Hot galvanized
  19. Brake tester Test weight per axle (at 50% braking ratio): 4000 kg
