Cosber Headlight Tester

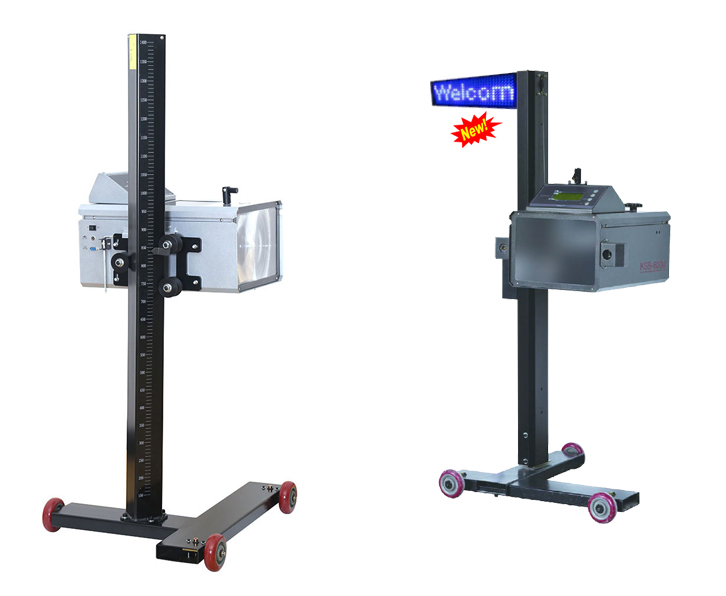

Manual Headlight Tester

Alat uji lampu manual utama kendaraan bermotor, berfungsi untuk memeriksa tingkat kekuatan cahaya dan kemiringan cahaya atas/bawah dan kiri/kanan secara digital.

Watch Video
Headlight Tester
Manual Headlight Tester

Manual Headlight Tester

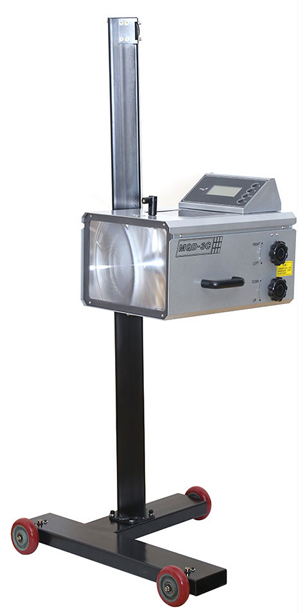

CSB-600 adalah alat uji lampu utama kendaraan berotor. Jenis penguji digunakan untuk memancarkan cahaya pada intensitas pendaran cahaya jarak cahaya, jumlah ekskursi berkas cahaya sebelum gerakan tangan mengukur kendaraan bermotor; Ekskursi berkas cahaya mengukur kecerahan dekat menunggu berbagai parameter.

Teknologi yang terkini, mengukur sebelum relevansi GB18565 menurut tuntutan cahaya memuaskan GB7258, berlaku untuk semua tingkat organisasi pendeteksi kendaraan bermotor, menjaga keakuratan cahaya lampu yang diproduksi oleh pabrikan sepeda motor maupun mobil dan industri pembuatan lampu.

  • Detection Lamp: LED, Halogen, Xenon, Matrix headlamps
  • Monitor & Printer: LCD Screen, Printer Dot Matrix
Pole Headlamp LCD Headlamp Mini Printer

Pengujian dilakukan untuk mengukur intensitas cahaya lampu depan, baik kekuatan cahaya maupun penyimpangan cahaya itu sendiri, dengan kemampuan ukur hingga 125.000cd dan dilengkapi hasil cetak (PRINTER). Alat ini dilengkapi dengan laser pendeteksi titik cahaya lampu dan juga menu kalibrasi.

Main Features :

  1. Accurate inspection for high beam and low beam of automobiles, independent testing
  2. Bright LCD screen, with professional Windows graphical operating system.
  3. "Arbitrary" 2D moving mechanism, multiple laser-assisted positioning system to ensure easy artificial lights physical center alignment operation.
  4. Standard RS232 communication port (optional) to computer, reliable network software.
  5. Blue-tooth wireless communication module, optional mini-printer a special design to convenient user’s operation
  6. Suitable for manual adjustment and inspection of automotive headlight height.
  7. Suitable for use in various vehicle detecting organizations, vehicle inspection stations, automobile industry, repair and maintenance garages.
  8. Optional rechargeable battery module, adapt to a variety of work environments.
  9. Optional R.G.B or DOT LED Matrix for bigger result

Spesification :

  1. Light Intensity: 0 - 120.000cd
  2. Deviation of Optical Axis:
  3. Headlightadjustment of halogen, xenon, LED
  4. Rotatingaluminumcolumn
  5. maximum height 1.80 m
  6. Data transmission: USB, Wifi, LAN
  7. 3 running wheels (rail system optional)
    1. High Beam: Vertical: (Up)350mm/10m ~ (Down)525mm/10m
    2. Horizontal: (Left)525mm/10m ~(Right)525mm/10m
    3. Low Beam: Vertical: (Up)350mm/10m ~ (Down)525mm/10m
    4. Horizontal: (Left)525mm/10m ~ (Right)525mm/10m
  8. Inspection Distance: 50 cm
  9. Inspection High: 400 - 1400mm
  10. Measurement Accuracy:
  11. Luminous intensity: ± 10%
  12. Optical axis deviation: ± 35mm/10m
  13. Power Supply: AC220V ±10%, 50Hz ±1%
  14. Power Consumtion: 15W
  15. Weight: 40Kg
  16. Dimension: 680mm (L) x 570mm (W) x 1580mm (H)
